$17,999.00

2009 Victory Motorcycles Kingpin Low
Request a Quote Financing Calculator Request a Brochure Financing Form

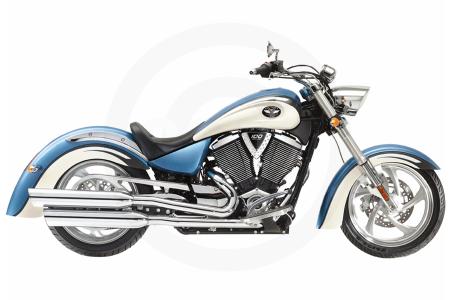

Click here to view full image.

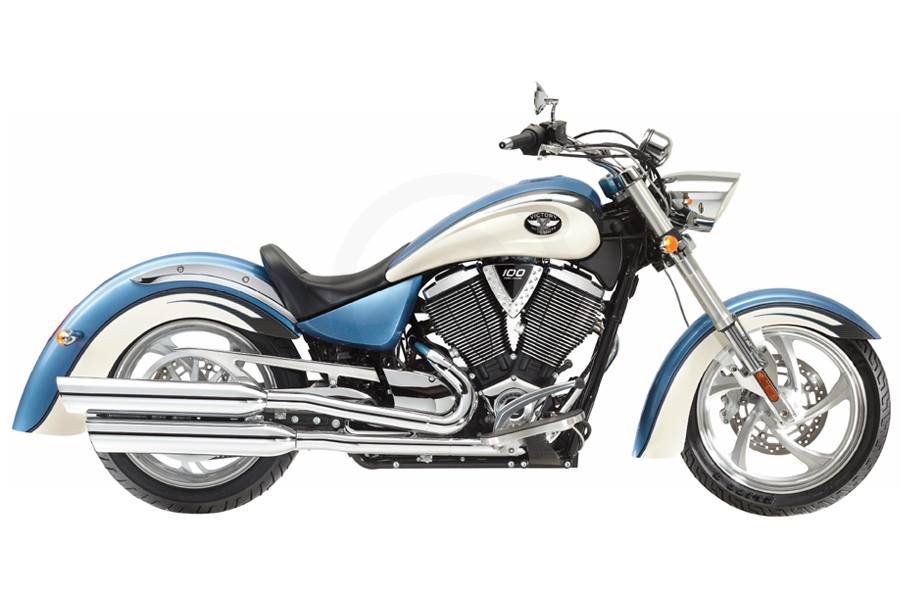

2 Tone Blue Ice/Pearl White W/Carbon Stripe
Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.Click on a thumbnail to view larger image.
View All ThumbnailsHide Thumbnails
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Riders who seek a low seat height and easily accessible controls will feel like these Low Cruisers have been custom-sized just for them. The ergonomics deliver comfort and inspire confidence.

  • 2" Pull Back Bars
  • Foot Pegs Moved 2.25" Rearward
  • Split-Tail Fuel Tank Integrated With Solo Seat
  • Multi LED Taillight
  • Lower Seat Height & Narrower Side Covers
  • Freedom® 100 CI V-Twin Engine
  • Custom-Inspired Headlight
  • Inverted Forks
  • Stingray Billet Wheel
  • Comfortable Riding Position
ENGINE
  • Engine Type: 4-Stroke 50 V-Twin
  • Cooling System: Air/Oil
  • Displacement: 100 cu. in. (1634 cc)
  • Bore X Stroke: 101 x 102 mm
  • Compression Ratio: 8.7:1
  • Valve Train: Single Overhead Camshafts With 4 Valves Per Cylinder, Self-Adjusting Cam Chains, Hydraulic Lifters
  • Fuel System: Electronic Fuel Injection With Dual 45 mm Throttle Body
  • Fuel Capacity: 4.5 gal. (17 l)
  • Exhaust: Staggered Slash-Cut Dual Exhaust With Crossover
  • Oil Capacity: 5 qt. (4.75 l)
  • Charging System: 38 amp Max Output
  • Battery: 12 V / 18 amp Hours
  • Primary Drive: Gear Drive With Torque Compensator
  • Clutch: Wet, Multi-Plate
  • Transmission: 6-Speed Overdrive Constant Mesh
  • Final Drive: Carbon Fiber Reinforced Belt
CHASSIS DIMENSIONS
  • Length: 99.9 in. (2537 mm)
  • Wheelbase: 65.6 in. (1666 mm)
  • Seat Height: 22.52 in. (640 mm)
  • Ground Clearance: 5.3 in. (135 mm)
  • Rake/Trail: 32.8° / 5.4 in. (138 mm)
  • Dry Weight: 657 lbss. (298 kg)
  • GVWR: 1234 lbs. (560 kg)
SUSPENSION
  • Front Suspension: Inverted Cartridge Telescopic Fork, 43 mm Diameter, 5.1 in. (130 mm) Travel
  • Rear Suspension: Single, Mono-Tube Gas, Cast Aluminum With Rising Rate Linkage, 3 in. (100 mm) Travel, Preload Adjustable Spring
BRAKES
  • Front Brake: 300 mm Floating Rotor With 4-Piston Caliper
  • Rear Brake: 300 mm Floating Rotor With 2-Piston Caliper
WHEELS & TIRES
  • Front Wheel: 18 x 3.5 in.
  • Rear Wheel: 18 x 5.5 in.
  • Front Tire: 130 / 70B18 Dunlop 491 Elite II
  • Rear Tire: 180 55-B18 Dunlop D417
COLOR OPTIONS
  • Solid Colors: Solid Black, Solid Blue Ice, Solid Super Graphite
  • Multiple Colors: 2 Tone Blue Ice/Pearl White W/Carbon Stripe, 2 Tone Midnight Cherry/Pearl White W/Carbon Stripe

Specifications

Engine
Engine Type 4-Stroke 50 V-Twin
Displacement 100 cu. in. (1634 cc)
Bore and Stroke 101 x 102 mm
Cooling Air/Oil
Compression Ratio 8.7:1
Fuel System Electronic Fuel Injection With Dual 45 mm Throttle Body
Ignition 12 V / 18 amp Hours
Chassis
Front Suspension Inverted Cartridge Telescopic Fork, 43 mm Diameter, 5.1 in. (130 mm) Travel
Front Brakes 300 mm Floating Rotor With 4-Piston Caliper
Front Tire Front Wheel: 18 x 3.5 in.; Front Tire: 130 / 70B18 Dunlop 491 Elite II
Rear Suspension Single, Mono-Tube Gas, Cast Aluminum With Rising Rate Linkage, 3 in. (100 mm) Travel, Preload Adjustable Spring
Rear Brakes 300 mm Floating Rotor With 2-Piston Caliper
Rear Tire Rear Wheel: 18 x 5.5 in.; Rear Tire: 180 55-B18 Dunlop D417
Dimensions
Dry Weight 657 lbss. (298 kg)
Fuel Capacity 4.5 gal. (17 l)
Wheelbase 65.6 in. (1666 mm)
Seat Height 22.52 in. (640 mm)
Trail 5.4 in. (138 mm)
Rake 32.8°
Transmission
Transmission 6-Speed Overdrive Constant Mesh
Final Drive Carbon Fiber Reinforced Belt
General
Colors Solid Colors: Solid Black, Solid Blue Ice, Solid Super Graphite; Multiple Colors: 2 Tone Blue Ice/Pearl White W/Carbon Stripe, 2 Tone Midnight Cherry/Pearl White W/Carbon Stripe

Compare Models

 Print








Year 2009
Manufacturer Victory Motorcycles
Model Kingpin Low
Style Cruiser
MSRP* $16,399.00
Chassis
Front Suspension Inverted Cartridge Telescopic Fork, 43 mm Diameter, 5.1 in. (130 mm) Travel
Front Brakes 300 mm Floating Rotor With 4-Piston Caliper
Front Tire Front Wheel: 18 x 3.5 in.; Front Tire: 130 / 70B18 Dunlop 491 Elite II
Rear Suspension Single, Mono-Tube Gas, Cast Aluminum With Rising Rate Linkage, 3 in. (100 mm) Travel, Preload Adjustable Spring
Rear Brakes 300 mm Floating Rotor With 2-Piston Caliper
Rear Tire Rear Wheel: 18 x 5.5 in.; Rear Tire: 180 55-B18 Dunlop D417
Dimensions
Dry Weight 657 lbss. (298 kg)
Fuel Capacity 4.5 gal. (17 l)
Wheelbase 65.6 in. (1666 mm)
MPG
Seat Height 22.52 in. (640 mm)
Trail 5.4 in. (138 mm)
Rake 32.8°
Engine
Engine Type 4-Stroke 50 V-Twin
Displacement 100 cu. in. (1634 cc)
Bore and Stroke 101 x 102 mm
Cooling Air/Oil
Compression Ratio 8.7:1
Fuel System Electronic Fuel Injection With Dual 45 mm Throttle Body
Ignition 12 V / 18 amp Hours
General
Speedometer
Tachometer
Odometer
Colors Solid Colors: Solid Black, Solid Blue Ice, Solid Super Graphite; Multiple Colors: 2 Tone Blue Ice/Pearl White W/Carbon Stripe, 2 Tone Midnight Cherry/Pearl White W/Carbon Stripe
Warranty
Transmission
Transmission 6-Speed Overdrive Constant Mesh
Final Drive Carbon Fiber Reinforced Belt
